| Parallel and 3-phase operation | No |
| Input voltage range | 9.3 – 17V 18.6 – 34V 37.2 – 68V |
| Output | Output voltage: 230 VAC ±2% 50 Hz or 60 Hz ± 0.1% (1) |
| Cont. output power at 25ºC (1) | 3000 VA |
| Cont. output power at 25ºC | 2400 W |
| Cont. output power at 40ºC | 2200 W |
| Cont. output power at 65ºC | 1700 W |
| Peak power | 6000 W |
| Dynamic (load dependent) DC low shut down (fully configurable) | Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff |
| Max. efficiency 12/ 24 /48 V | 93 / 94 / 95% |
| Zero load power 12 / 24 / 48 V | 12 / 13 / 15 W |
| Zero load power in ECO mode | 1.5 / 1.9 / 2.8 W |
| Programmable relay (2) | Yes |
| Stop & start power ECO-mode | adjustable |
| Protection (3) | a – g |
| Bluetooth wireless communication | For remote monitoring and system integration |
| VE.Direct communication port | For remote monitoring and system integration |
| Remote on-off | Yes |
| Common Characteristics | Operating temperature range: -40 to +65ºC (fan assisted cooling) Humidity (non-condensing): max 95% |
| Common Characteristics | Material & Colour: steel (blue RAL 5012; and black RAL 9017) Protection category: IP21 |
| Battery-connection | 12 V/24 V: 2+2 M8 bolts 48 V: M8 bolts |
| 230 V AC-connection | Screw terminals |
| Weight | 19kg |
| Dimensions (hxwxd) | 533 x 285 x 150mm (12 V) 485 x 285 x 150mm (24 V/48 V) |
| Safety | EN 60335-1 |
| Emission Immunity | EN 55014-1 / EN 55014-2/ EN-IEC 61000-6-1 / EN-IEC 61000-6-2 / EN-IEC 61000-6-3 |
| Automotive Directive | ECE R10-5 |

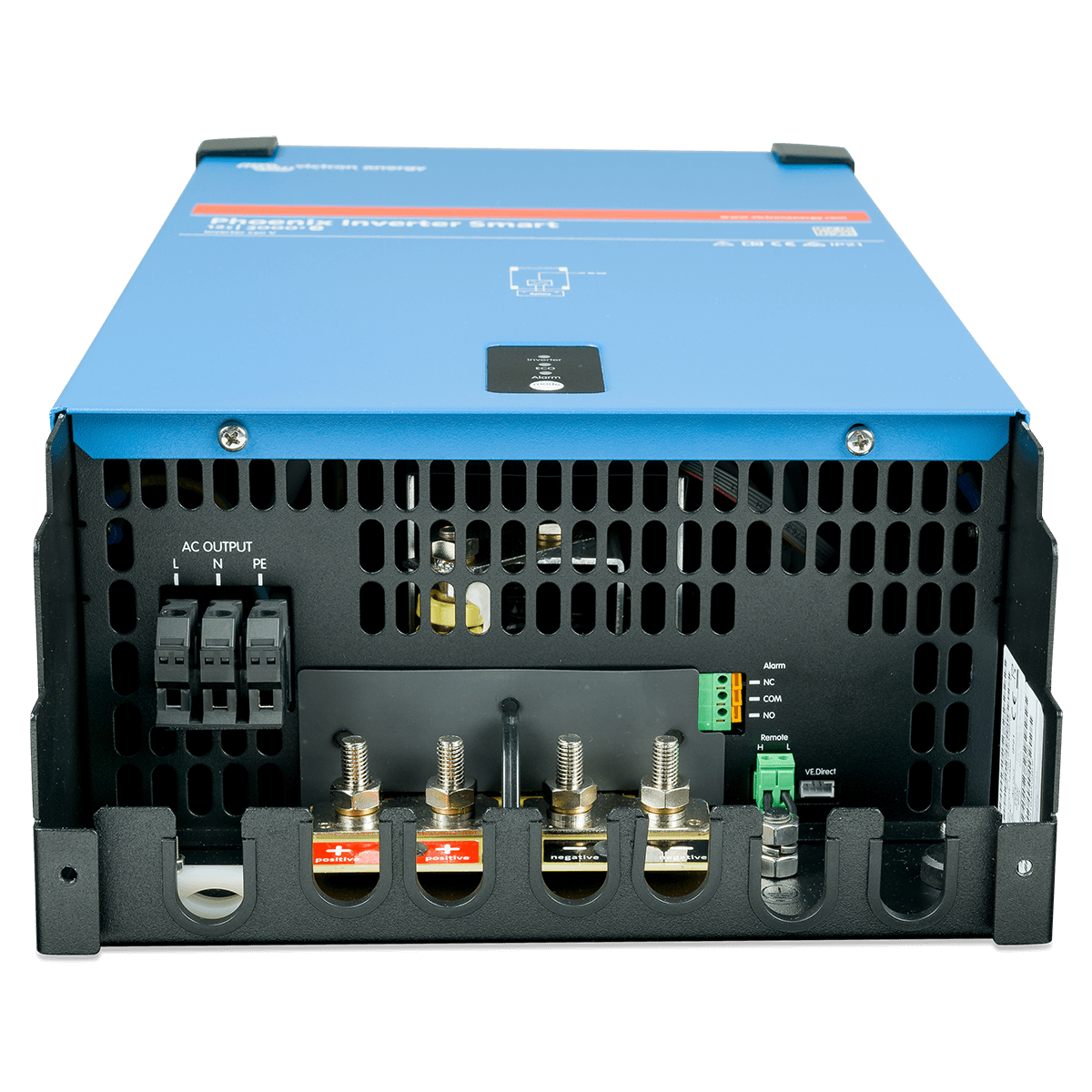

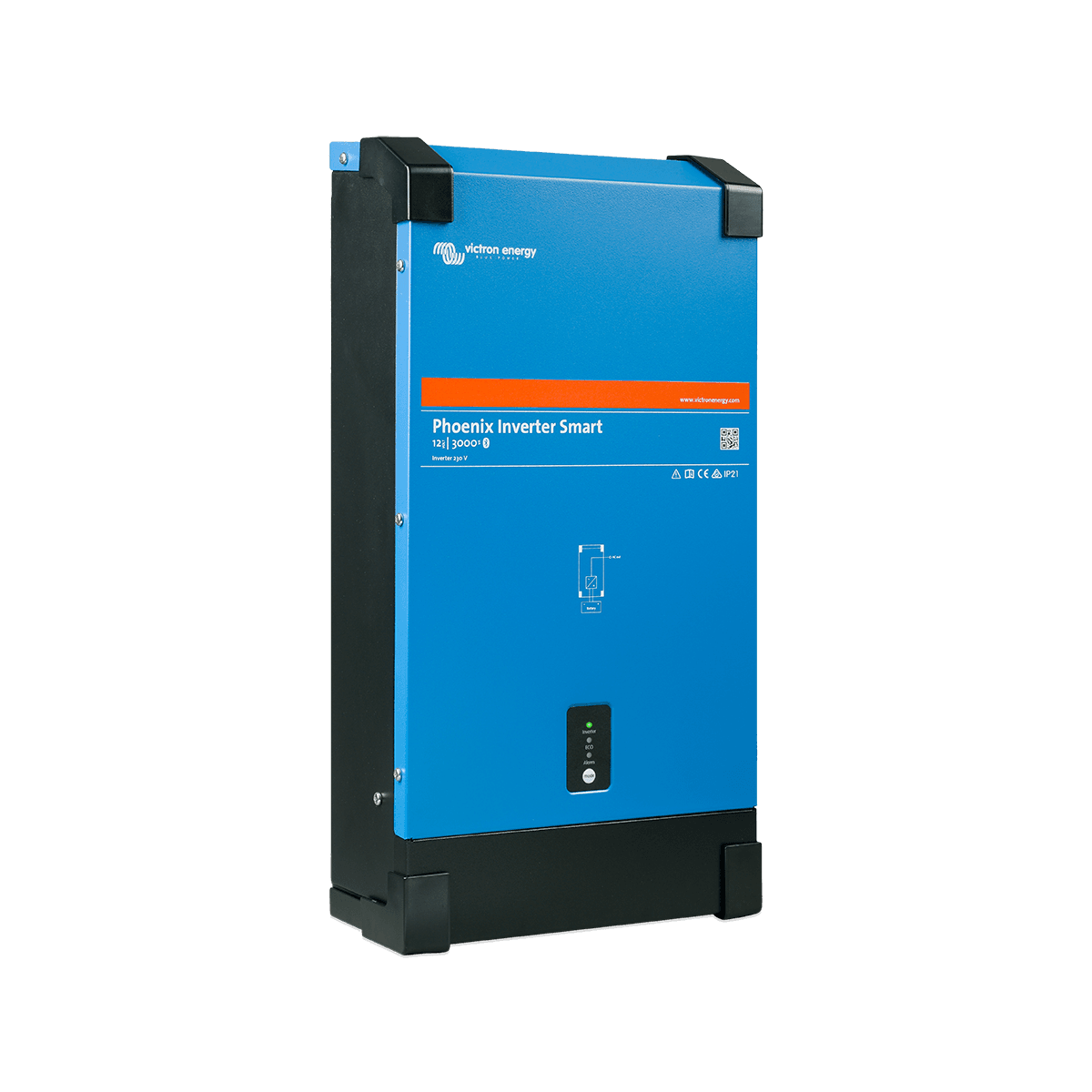

Phoenix Inverter 12/3000 230V Smart
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power.
Specs
Description
Discover the Phoenix Inverter Smart, an efficient and reliable power solution designed for versatility and performance. With a sleek new design and full metal casing, it’s built on Victron’s proven Phoenix inverter platform.
Featuring a toroidal transformer for high peak power surge capacity, stable voltage, frequency, and high-quality sine-wave output, it can power most common plug-in appliances. Installation is simplified with accessible terminals for a professional finish.
Equipped with built-in Bluetooth, setting up your high-power inverter is easier than ever. Configure alarms, voltage cut-off, output voltage, frequency, eco-mode, and more using VictronConnect for seamless control and monitoring. Explore more about this innovative inverter in our Marine Electrical category and visit Victron’s page for related products.
