Garmin

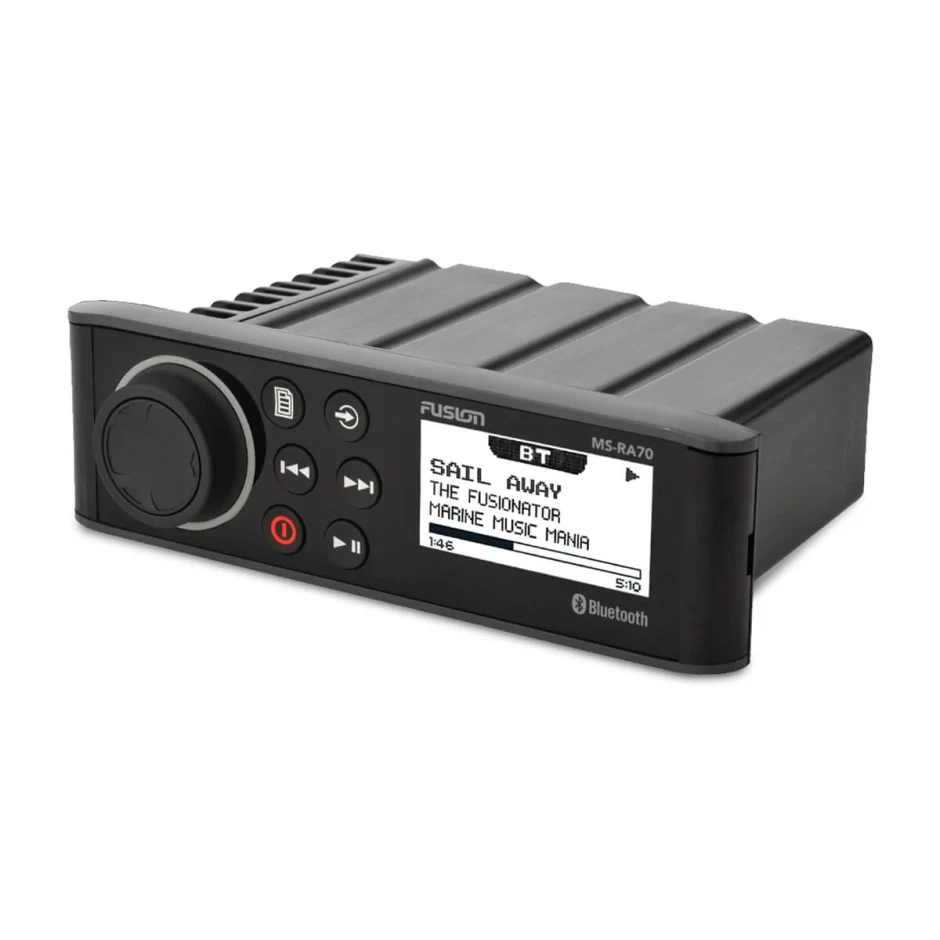

MS-RA70 Marine Stereo with BLUETOOTH®

Take advantage of the many source options available, including BLUETOOTH® technology, advanced SiriusXM® features2, DAB+ radio3, AM/FM radio, AUX and USB connections.

SKU: 010-01516-01 Category:

Specs

General
Dimension7.4″ x 2.36″ x 4.87″ (188 x 60 x 123.5 mm)
Weight1.23 lbs (556 g)
Water ratingIPX7 (front panel only, when properly installed)
Display2.6″ optically bonded monochrome LCD
Operating temperature32° to 122° F (0° to 50° C)
Current (max)15 A
Networking
NMEA 2000® LENsee Additional
BLUETOOTH® wireless rangeup to 30 ft (10 meters)
ANT® wireless rangeUp to 10 ft (3 meters)
Wireless frequencies/protocolsBLUETOOTH®: 2.4 GHz @ +1.9 dBm nominal
ANT®: 2.4 GHz @ +1.9 dBm nominal
Audio
AmplifierClass-AB (4 ohm)
Electrical Features
Power Input10.8 – 16 VDC
Compass safe distance5.9″ (150 mm)
Stereo Features
Peak power200 watts
Rated power output (4 ohm)26 watts RMS x 4 @ 14.4 V input < 10% THD
Fusion-Link™ controlyes (see Additional)
Multi-Zone™ technology2 zones
BLUETOOTH® wireless technologyYes
ANT® wireless technologyYes
SiriusXM-readysee Additional
DAB+ readysee Additional
Supports NRX wired remotesee Additional
Multi-language interfaceDutch, English, French, German, Italian, Spanish
Software updatesUSB
Warranty1year
Sources
Supported sourcesAM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, AOA
MS-RA70NSX: SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)
MS-RA70 and MS-RA70N: DAB+ ready (available in Europe and Australia only)
Connections
Auxiliary inputs (RCA)1
NMEA 2000® ports1 (MS-RA70N and MS-RA70NSX only)
USB 2.0 ports1
SiriusXM ports1 (MS-RA70NSX only)
AM/FM ports (Motorola antenna connector)1
Speaker connections4 (2 zone amplified)
RCA pre-out (left, right and subwoofer)2 zones (requires external amplification)
Line out2 (L + R per zone, requires external amplification)
Subwoofer outZone 1 (mono output, requires external amplification)
Additional
AdditionalNMEA 2000® LEN: 1 (50 mA), MS-RA70N and MS-RA70NSX only

Fusion-Link control: MS-RA70: smart device and Garmin watch; MS-RA70 and MS-RA70NSX: MFD, smart device and Garmin watch

SiriusXM-Ready: MS-RA70NSX only

DAB+ Ready: MS-RA70 and MS-RA70N only

Supports NRX wired remote: MS-RA70N and MS-RA70NSX only

General
Physical dimensions (HxWxD)2.36″ x 7.40″ x 4.87″ (60 x 188 x 123.5 mm)
Weight19.6 oz (556 g)
Water ratingIPX7 (front panel only, when properly installed)
Power input10.8-16 VDC
Operating temperature range32° to 122° F (0° to 50° C)
Current (max)15 A
NMEA 2000 LEN1 (50 mA)
Bluetooth wireless rangeUp to 30 ft (10 m)
ANT wireless rangeUp to 10 ft (3 m)
Wireless frequencies/protocolsBluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal
Compass-safe distance5.9″ (150 mm)
Stereo Features
Display128 x 64 optically bonded monochrome LCD
Built-in amplifierClass-AB
Peak power200 W
Rated power output (4 Ohm)26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ controlMS-RA70: yes (smartphone and Garmin watch)
MS-RA70N/MS-RA70NSX: yes (MFD, smartphone and Garmin watch)
Multi-Zone™ technology2 zones
Bluetooth wireless technologyYes
ANT wireless technologyYes
SiriusXM-readyMS-RA70NSX only (requires SiriusXM Connect vehicle tuner)
DAB+ readyMS-RA70 and MS-RA70N only; (requires DAB100A antenna module)
NRX remote compatibilityMS-RA70N and MS-RA70NSX only
Multi-language interfaceDutch / English / French / German / Italian / Spanish
Fits DIN-sized cutout
Software updatesUSB
Warranty1 year
Sources
SourcesAM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA
MS-RA70NSX only: SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)
MS-RA70 and MS-RA70N only: DAB+ ready (available in Europe and Australia only)
Connectivity
Auxiliary inputOne RCA input (AUX)
NMEA 2000MS-RA70N and MS-RA70NSX only: 1 port
USB 2.01 port
SiriusXM satellite radioMS-RA70NSX only: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio1 Motorola antenna connector port
Speaker2 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer)2 zones (requires external amplification)
Line out2 (1 x L + R per zone, requires external amplification)
Subwoofer out1 x mono output (requires external amplification)



Description

IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine stereo environment, the RA70 Series has an IPX7-rated water-resistant front panel to perform and last on board.

MULTIPLE MOUNTING OPTIONS
Install the RA70 Series marine stereo with a conventional flush finish, or integrate it into a glass helm for a stunning flat finish.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including BLUETOOTH® technology, advanced SiriusXM® features2, DAB+ radio3, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE
A selection of advanced features is now available on SiriusXM2.
