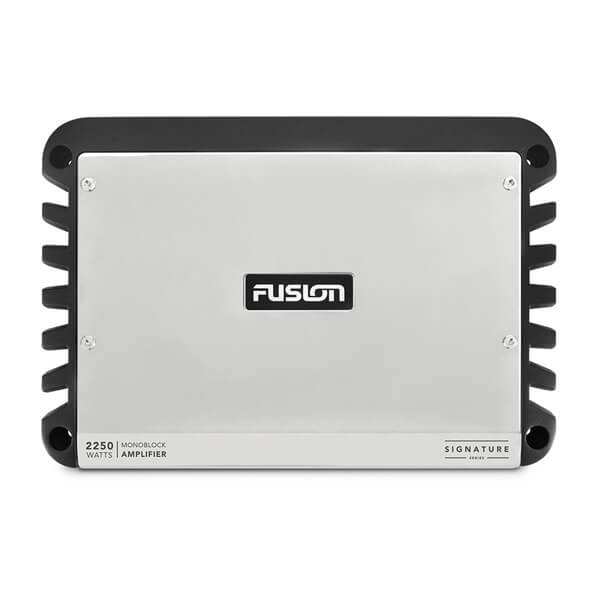

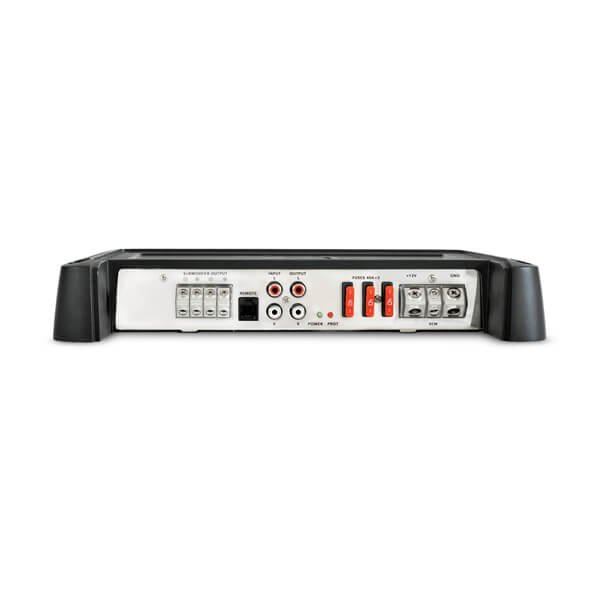

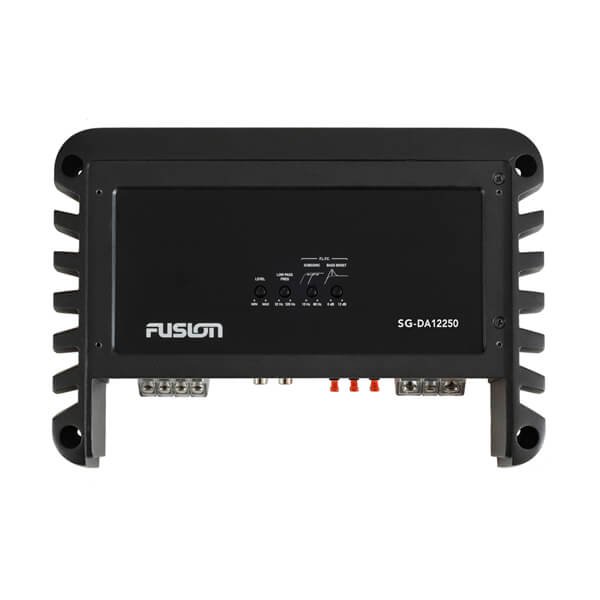

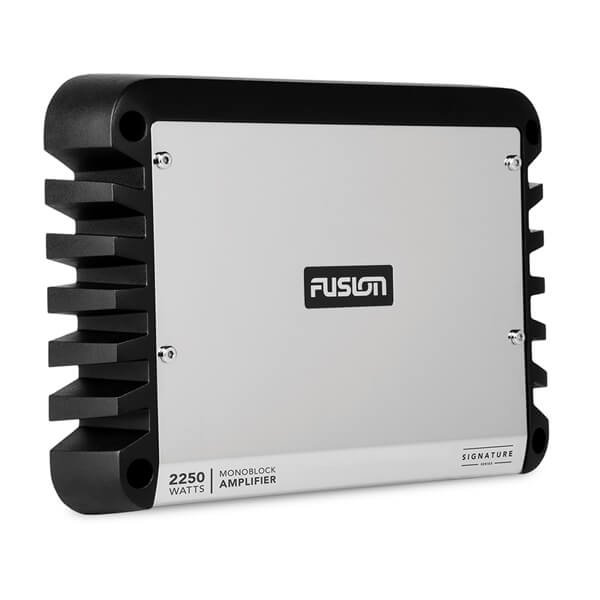

Signature Series Marine Amplifiers

Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive protection from the environment available — delivering a Signature performance out on the water.

SKU: N/A Category: Electronics & Navigation Tag: amplifiers

Specs

General
Physical dimensions (LxWxH)	Monoblock/ and 4/5 channels: 11.81″ x 8.27″ x 1.97″ (300 x 210 x 50 mm) 6/8 channels and 24-Volt 6 channel: 16.54″ x 8.27″ x 2.24″ (420 x 210 x 57 mm)
Amplifier class	D
Peak power (Watts)	Monoblock: 2250 W 4 channel: 1400 W 5 channel: 1600 W 6 channel/24-Volt 6 channel: 1500 W 8 channel: 2000 W
Total rated power output – 4 Ohm (Watts)	Monoblock: 500 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD 4 channel: 150 W RMS x 4 @ 14.4 V input – 4 Ohm < 1% THD 5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD 6 channel: 100 W RMS x 6 @ 14.4 V input – 4 Ohm < 1% THD 8 channel: 100 W RMS x 8 @ 14.4 V input – 4 Ohm < 1% THD 24-Volt 6 channel: 100 W RMS x 6 @ 28.8 V input – 4 Ohm < 1% THD
Total rated power output – 2 Ohm (Watts)	Monoblock: 850 W RMS x 1 @ 14.4 V input – 2 Ohm < 1% THD 4 channel: 220 W RMS x 4 @ 14.4 V input – 2 Ohm < 1% THD 5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input – 2 Ohm < 1% THD 6 channel: 140 W RMS x 6 @ 14.4 V input – 2 Ohm < 1% THD 8 channel: 140 W RMS x 8 @ 14.4 V input – 2 Ohm < 1% THD 24-Volt 6 channel: 140 W RMS x 6 @ 28.8 V input – 2 Ohm < 1% THD
Total rated power output (Watts)	Monoblock: 1100 W RMS x 1 @ 14.4 V input – 1 Ohm < 1% THD 4 channel: 440 W RMS x 2 @ 14.4 V input – 4 Ohm Bridged < 1% THD 5 channel: 250 W RMS x 2 @ 14.4 V input – 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD 6 channel: 280 W RMS x 3 @ 14.4 V input – 4 Ohm Bridged < 1% THD 8 channel: 280 W RMS x 4 @ 14.4 V input – 4 Ohm Bridged < 1% THD 24-Volt 6 channel: 280 W RMS x 3 @ 28.8 V input – 4 Ohm Bridged < 1% THD
Frequency response	Monoblock Amplifier: 10 Hz – 320 Hz (-3 dB, dB @ 4 Ohm rated power) – subwoofer only 4/5 channels: 10 Hz – 50 kHz (-3dB, dB @ 4 Ohm rated power) 6/8 channels: 10 Hz – 40 kHz (-3dB, dB @ 4 Ohm rated power) 6/8 channels and 24-Volt 6 channel: 10 Hz – 40 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity	0.3 V – 8 V RMS (user adjustable)
Input impedance	Monoblock/5 channel: 4k Ohm nominal 4/6/8 channels and 24-Volt 6 channel: 7k Ohm nominal
High-pass/low-pass full range filter	yes (user selectable)
HP variable crossover frequency	Monoblock: 10 Hz – 80 Hz (subwoofer) 4/5/6/8 channels and 24-Volt 6 channel: 32 Hz – 320 Hz
LP variable crossover frequency	Monoblock: 32 Hz – 320 Hz (subwoofer) 4/5/6/8 channels and 24-Volt 6 channel: 32 Hz – 320 Hz
Bass boost	0 dB – 9 dB, user adjustable (zone 3 only)
Operating voltage	Monoblock and 4/5/6/8 channels: 10.8 V – 16 V DC 24-Volt 6 channel: 21.6 V – 32 V DC
Current consumption (StandBy)	Monoblock and 4/5/6/8 channels: < 1 mA @ 14.4 V input 24-Volt 6 channel: < 1 mA @ 28.8 V input
Current consumption (Idle)	Monoblock and 4/5/6/8 channels: < 2.5 A @ 14.4 V input 24-Volt 6 channel: < 1.25 A @ 28.8 V input
Current consumption (Max)	Monoblock: 120 A 4/5 channels: 80 A 6 channel: 75 A 8 channel: 100 A 24-Volt 6 channel: 35 A
Fuse rating	Monoblock/6 channel: 3 x 40 A ATC blade-type (SAE J1171 compliant) 4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant) 8 channel: 4 x 40 A ATC blade-type (SAE J1171 compliant) 24-Volt 6 channel: 3 x 20 A ATC blade-type (SAE J1171 compliant)
Operating temperature range	32° to 122° F (0° to 50° C)

Description

The Signature Series Marine Amplifiers embody Fusion’s True-Marine design philosophy. Additionally, they’ve undergone rigorous testing for protection against salt fog, temperature variations, vibration, and UV exposure.

Moreover, these amplifiers feature built-in variable bass boost, a subsonic filter, and variable low/high pass crossover filters. Consequently, they offer superior performance and enhanced system protection.

Furthermore, their highly efficient Class-D design minimizes battery drain while delivering higher output compared to Class-AB amplifiers. As a result, this leads to increased power to connected speakers/subwoofers, elevating audio performance to a whole new level. For more Fusion product just click Here
