GPSMAP with Worldwide Basemap and Sonar

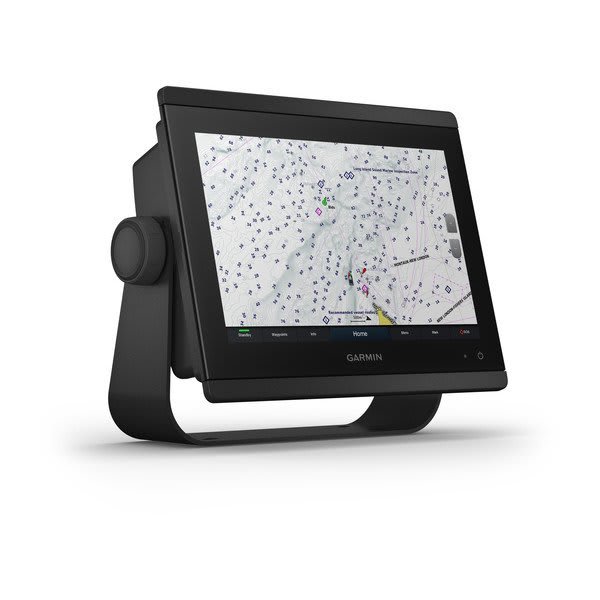

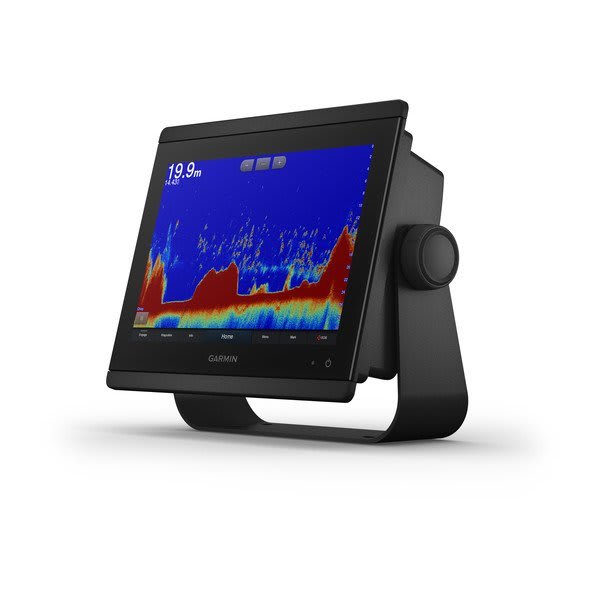

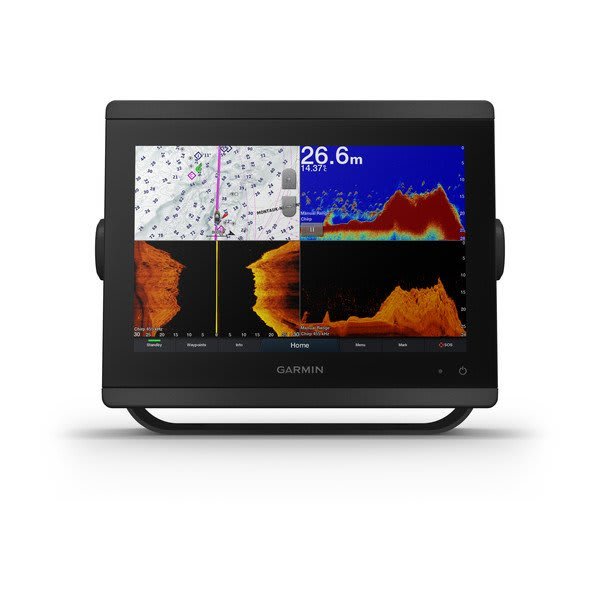

GPSMAP 8412xsv, 8410xsv, 8416xsv were easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

SKU: N/A Category: Electronics & Navigation Tags: Radar, Sonar

Specs

General
Dimension	16xsv – 15.1″ x 10.3″ x 3″ (38.5 cm x 26.3 cm x 7.6 cm) 12xsv – 11.9″ x 8.5″ x 3″ (30.3 cm x 21.6 cm x 7.6 cm) 10xsv – 10.25″ x 8.0625″ x 2.95″ (25.9 cm x 20.5 cm x 7.5 cm)
Weight	16xsv – 9.6 lbs (4.4 kg) 12xsv – 6.2 lbs (2.8 kg) 10xsv – 5.2 lbs (2.4 kg)
Waterproof	IPX7
Touchscreen	yes
Display Type	16xsv & 12xsv – FHD, IPS 10xsv – WUXGA, IPS
Display Size	10.1″ x 5.7″; 11.6″ diagonal, 25.7 cm x 14.5 cm; 29.5 cm diagonal
Display Resolution	1920 x 1080 pixels
Mounting Options	16xsv – Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) 10xsv & 12xsv – Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Maps & Memory
Accepts Data Cards	2 microSD cards
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS	Yes
GLONASS	Yes
Galileo	Yes
Has built-in receiver	Yes
Receiver	10 Hz
NMEA 2000 Compatible	Yes
NMEA 0183 Compatible	Yes
Supports WAAS	Yes
Built-in Maps
Built-in Auto Guidance	Yes
Tide tables	Yes
Optional Map Support
BlueChart g3	Yes
BlueChart g3 Vision	Yes
LakeVü g3	Yes
LakeVü g3 Ultra	Yes
Garmin Navionics+™	Yes
Garmin Navionics Vision+™	Yes
TOPO 100K	Yes
Standard Mapping	Yes
Garmin Quickdraw Contours	Yes
Raster chart support	Yes
Chartplotter Features
Smart Mode Compatible	Yes
AIS	Yes
DSC	Yes
Supports Fusion-Link™ compatible radios	Yes
GSD Black Box Sonar Support	Yes
GCV Black Box Sonar Support	Yes
ActiveCaptain® compatible	yes
GRID (Garmin Remote Input Device) compatible	Yes
Wireless Remote Compatible	Yes
Sailing Features	Yes
Spoken audio alerts	Yes
OneHelm support	Yes
Electrical Features
Power Input	10-32 Vdc
Typical current draw at 12 Vdc	1.3 A
Maximum current draw at 12 Vdc	6.0 A
Maximum power usage at 10 Vdc	10xsv – 40.1W 12xsv – 45W 16xsv – 52.1W
Sonar Features
Displays sonar	Yes
Power output	10xsv & 12xsv – 1 kW 16xsv – none
Traditional sonar (dual frequency/beam)	built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü	built-in 260/455/800/1000/1200 kHz
SideVü	built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar	Yes
LiveScope	Yes
Connections
NMEA 2000® ports	1
Connections NMEA0183 Input Ports	1
NMEA 0183 input (Tx) ports	1

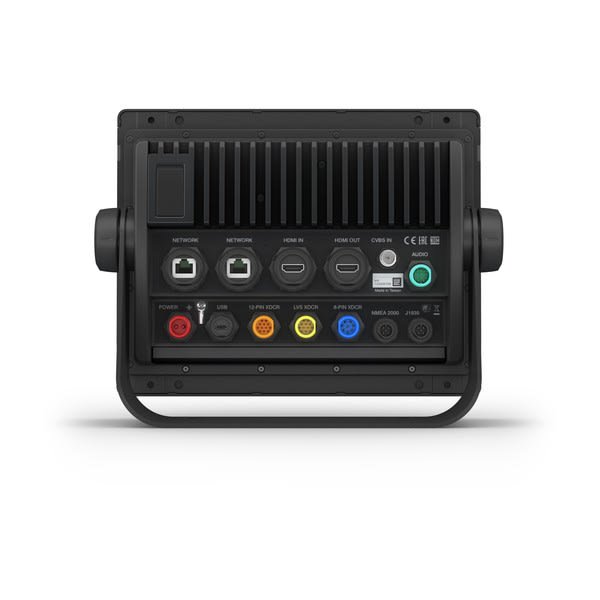

Video input ports	1 (BNC composite); 1 HDMI (HDCP compliant)
Video output ports	1 HDMI
J1939 ports	1
Garmin Marine Network Ports	2
8-pin transducer ports	yes
12-pin transducer ports	yes
USB ports	Yes
BNC external GPS antenna port	Yes
BLUETOOTH® pairing	Yes
ANT+ (Connectivity)	Yes
Garmin Wi-Fi network (local connection)	Yes

Description

GPSMAP is Available in sizes from 10” to 24”, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm. The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. For more Garmin link just click Here
